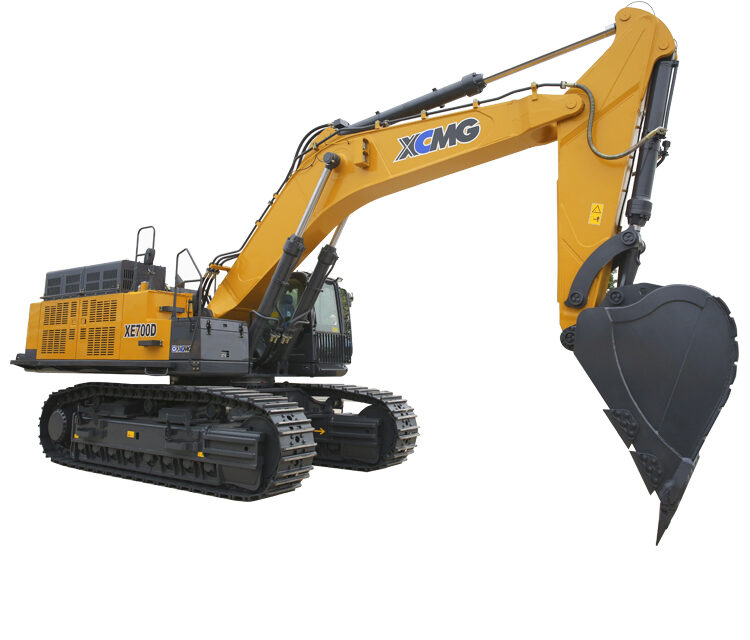

XCMG crawler excavator
Model: XE700D
Main specifications:
| ITEM | Unit | XE700D | |
| Operating weight | kg | 69000 | |
| Standard bucket capacity | m³ | 2.4～4.6 | |
| Engine | Engine Model | / | Cummins QSX15 |
| Direct injection | / | √ | |
| Four strokes | / | √ | |
| Water cooling | / | √ | |
| Turbo charged | / | √ | |
| Air to air intercooler | / | √ | |
| No. of cylinders | / | 6 | |
| Rated power/speed | kw/rpm | 336/1800 | |
| Max. torque/speed | N.m | 2102/1400 | |
| Displacement | L | 15 | |
| Main Spec. |
Travel speed | km/h | 4.2/3.0 |
| Swing speed | r/min | 7 | |
| Max. gradeability | / | 35 | |
| Ground pressure | kPa | 99.1 | |
| Max.Bucket digging force | kN | 363 | |
| Max.arm crowd force | kN | 300 | |
| Max.traction force | kN | 450 | |
| HYD System |
Main pump | / | 2 piston pumps |
| Rate flow of main pump | L/min | 2×450 | |
| Max pressure of prime relief valve | MPa | 31.4/34.3 | |
| Max pressure of travel system | MPa | 34.3 | |
| Max pressure of swing system | MPa | 25.5 | |
| Max pressure of pilot system | MPa | 3.9 | |
| Dimensions | Fuel tank capacity | L | 980 |
| Hydraulic tank capacity | L | 455 | |
| Engine lubrication | L | 48 | |
| Overall length | mm | 11940 | |
| Overall width | mm | 4280 | |
| Overall height | mm | 4700 | |
| Overall width of upperstructure | mm | 3260 | |
| Track length | mm | 5955 | |
| Overall width of undercarriage | mm | 4260 | |
| Crawer width | ㎜ | 650 | |
| Track wheelbase | mm | 4680 | |
| Crawer gauge | mm | 2800/3350 | |
| Clearance under counter weight | mm | 1552 | |
| Ground clearance | mm | 853 | |
| Min.tail swing radius | mm | 3900 | |
| Work Radius |
Max. digging height | mm | 11350 |
| Max. dumping height | mm | 7370 | |
| Max. digging depth | mm | 6900 | |
| 8inch horizonal digging depth | mm | 6750 | |
| Max. vertical wall digging depth | mm | 5500 | |
| Max. digging reach | mm | 11580 | |
| Min. swing radius | mm | 4750 | |
| Standard | boom length | mm | 6600 |
| bucket arm length | mm | 2900 | |
| bucket load | m³ | 3.5 rock | |
| Options | boom length | mm | 7300 |
| bucket arm length | mm | 3500 | |
| bucket load | m³ | 3.1 rock bucket 2.8 earth bucket | |
