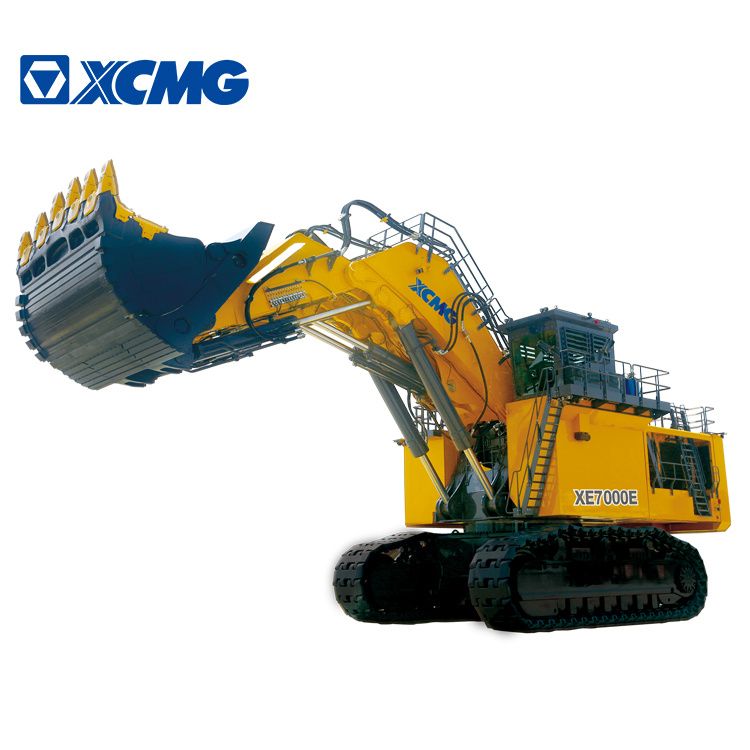

XCMG 700 ton Largest Hydraulic Mining Excavator Equipment XE7000.
XE7000 is the largest tonnage mining excavator independently developed by XCMG to meets requirements of large-scale mining construction.
Adopting dual power unit control system, the excavator is equipped with intelligent monitoring and fault self-diagnosis system, centralized fire extinguishing system, centralized lubrication system and a variety of safety equipment to ensure safe and efficient operation of the whole machine, as well as simple operation and convenient maintenance.
According to the characteristics of different mining construction, the machine can flexibly select two power options (diesel engine or motor engine) and two working modes (shovel or backhoe).
| Description | Unit | Parameter value | |
| Operating weight | Kg | 67000 | |
| Bucket capacity | m³ | 34 | |
| Engine | Output power | kw/rpm | 1193/1800 |
| torque/speed | N.m/rpm | 6835/1500 | |
| Displacement | L | 50 | |
| Hydraulic system | Travel speed(H/L) | km/h | 1.5 |
| Gradeability | ° | 24 | |
| Pressure of prime valve | MPa | 32 | |
| Pressure of travel system | MPa | 32 | |
| Pressure of swing system | MPa | 30 | |
| Pressure of pilot system | MPa | 5 | |
| Oil Capacity | Fuel tank capacity | L | 13600 |
| Hydraulic tank capacity | L | 6400 | |
| Engine oil capacity | L | 260 | |
| Appearance size | Overall length | mm | 23500 |
| Overall width | mm | 9090 | |
| Overall height | mm | 9440 | |
| Width of platform | mm | 7000 | |
| Overall width of chassis | mm | 7400 | |
| Min. ground clearance | mm | 1380 | |
| Working scope | Min. tail swing radius | mm | 7930 |
| Max. digging height | mm | 18700 | |
| Max. dumping height | mm | 12900 | |
| Max. digging depth | mm | 3800 | |
| Max. vertical wall digging depth | mm | 8170 | |
| Standard | Length of boom | mm | 8000 |
| Length of arm | mm | 5000 | |
