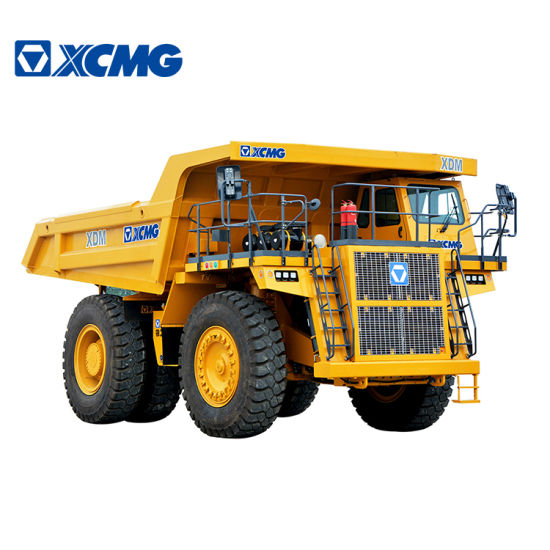

XCMG Official Mechanical Driver Dump Truck XDM70 for sale
Mechanical drive mining trucks can be widely used in mining, civil engineering, quarry etc. Strong climbing abilit, adapt to a variety of working conditions, high efficiency. XCMG has developed several classic mechanical drive trucks and developed lightweight mining trucks with high reliability and low operating costs. For the global market, we have a full range of mining transportation vehicles.
Performance Characteristics:
1. High performance engine Environment-friendly, electronically controlled, powerful diesel engine with less fuel consumption. High torque at low rpm for more traction power ensures strong vehicle climbing ability.
2. Structurally enhanced frame * Welded box sectional steel structure. * High strength alloy steel ensures the frame have high toughness to resist low-pressure impact, good fatigue properties and good weldability. * Steel castings have been incorporated at key frame pivot points and key load bearing critical portions of the frame, includes the rear body pivot, pump pivot and cross beams, etc. * The computer-aid design and finite element analysis ensure the frame have enough intensity.
Product Show
Product Paramenters
| Item | Unit | XDM70 | |
| Performance parameters | Rated Payload | kg | 65000 |
| Empty Weight | kg | 28000 | |
| Gross Vehicle Weight | kg | 93000 | |
| Drive Style | 6×4 | ||
| Max. Speed | km/h | 55 | |
| Max. Gradeability | % | 38 | |
| Min. Turning Diameter | m | 22 | |
| Overall dimension | mm | 10290*5880*5085 | |
| Engine | Model | YC6K480-GT30 | |
| Rated Power/Speed | kW/rpm | 353/1900 | |
| Max. Torque/Speed | Nm/rpm | 2200/1100-1500 | |
| Tires | Standard Tire | 16.00R25 | |
